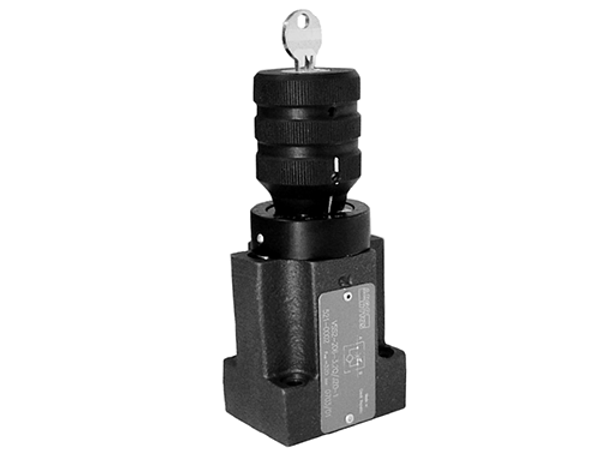

Size 06 (D03) • Qmax 32 l/min (9 GPM) • pmax 320 bar (4600 PSI)

• Subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
• Set flow rate independent of load pressure and temperature changes
• Meter-in, meter-out or bleed-off flow control
• Externally or internally piloted pressure compensator
• Adjusted flow rate depends on the orifice area and adjusted differential pressure
• Wide range of flow rate options
• Quiet and modulated response to load changes
• Adjustment option with non-lockable or lockable cylindrical
• Fine low-torque adjustment
• In the standard version, the steel parts are zinc-coated for 240 h protection acc. to ISO 9227 and the valve body is phosphated
