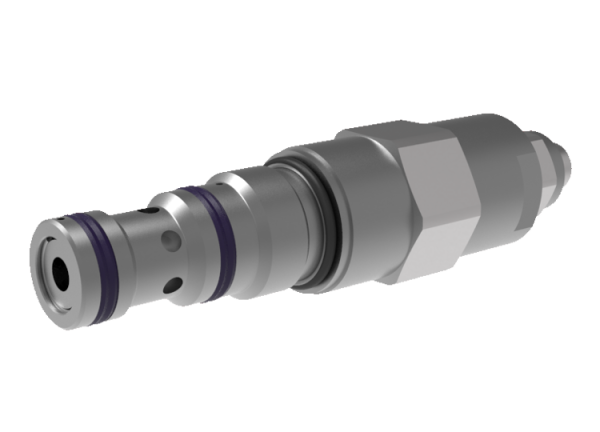

ARGO-HYTOS SO5A-BP3/HX-XS-B קונטרבלנס

ARGO-HYTOS SO5A-BP3/HX-XS-B קונטרבלנס

 500

* המחירים אינם כוללים: מע"מ , היטלים, מיסי יבוא, שילוח , הובלה ארצית, שמן, צנרת למערכת, התאמות הרכבה אצל הלקוח ובקרה.

7/8-14 UNF • Qmax 40 l/min (11 GPM) • pmax 420 bar (6100 PSI)

  • The valve prevents runaway ahead of the pump in the event of a negative load
  • Load-holding with leak-free closing poppet when the directional control valve is in neutral position
  • Pressure relief function protecting the actuator against overloading and pressure peaks
  • Integrated check valve acting as an anti-cavitation valve
  • When installed close to actuator the valve can be used as a hose burst valve
  • Setting can be performed during machine operation = leak free closing of adjustable element
  • Wide relief pressure range of setting up to 420 bar (6100 PSI)
  • In the standard version, the valve is zinc-coated for 520 h protection acc. to ISO 9227

קטלוג להורדה:
