Size 10 (D05) • Qmax 140 l/min (37 GPM) • pmax 350 bar (5100 PSI)

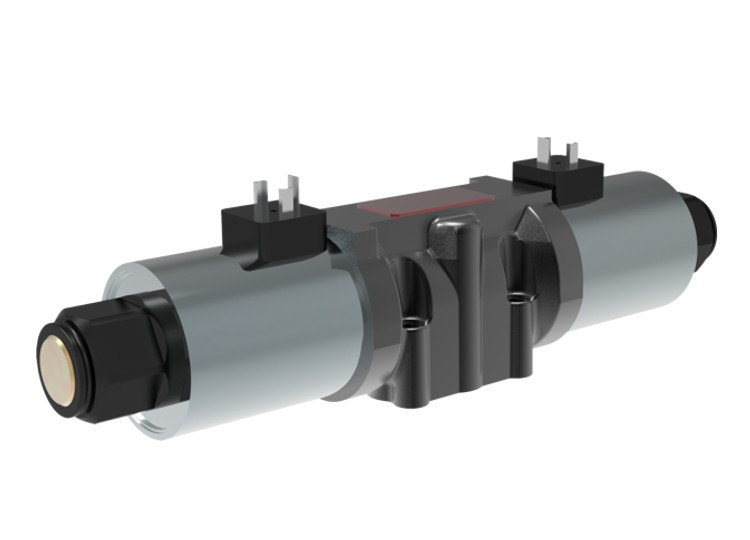

• Direct acting directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
• High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
• Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
• The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
• Wide range of solenoid electrical terminal versions available
• Wide range of interchangeable spools and manual overrides available
• CSA Certificate upon request
• Inductive contactless Normally Open and Normally Closed spool position sensor option
• Soft-shift spool speed control option
• The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
• In the standard version, the valve housing is phosphated and steel parts zinc-coated for 240 h salt spray protection acc. to ISO 9227
• Enhanced surface protection for mobile sector available (ISO 9227, 520 h salt spray)
