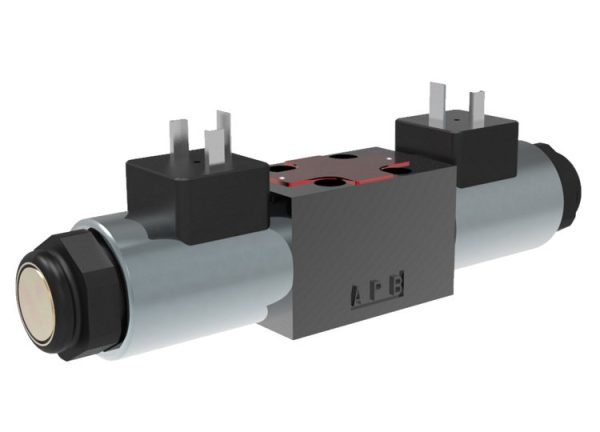

Size 04 (02) • Qmax 30 l/min (8 GPM) • pmax 320 bar (4600 PSI)

• Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 02)
• High transmitted hydraulic power up to 320 bar with optimized design to minimize pressure drop
• Three chamber housing design for production cost saving
• The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
• Wide range of solenoid electrical terminal versions available
• CSA Certificate upon request
• The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
• In the standard version, the valve housing is phosphated and steel parts zinc-coated for 240 h salt spray protection acc. to ISO 9227
• Enhanced surface protection for mobile sector available (ISO 9227, 520 h salt spray)
