Size 06 (D03) • Qmax 80 l/min (21 GPM) • pmax 320 bar (4600 PSI)

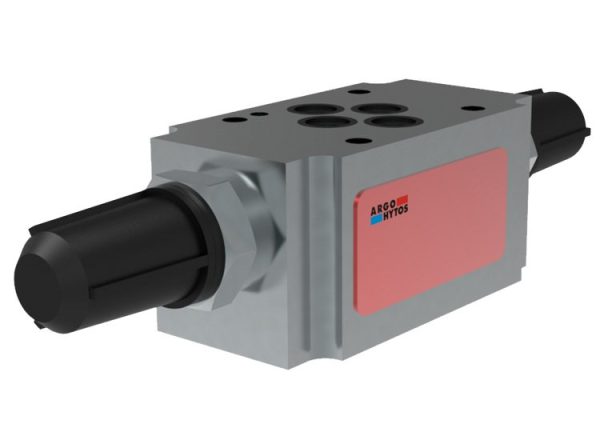

• Restrictor valve with reverse flow check, mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
• Meter-in or meter-out flow control
• Leak-free closing in one or two service ports
• Linear adjustment and positive seat overlap
• Desired settings may be locked down
• Optionally adjustable by allen key with protective cap, or by hand screw
• In the standard version, the valve is zinc-coated for 240 h protection acc. to ISO 9227 and the valve body is phosphated
