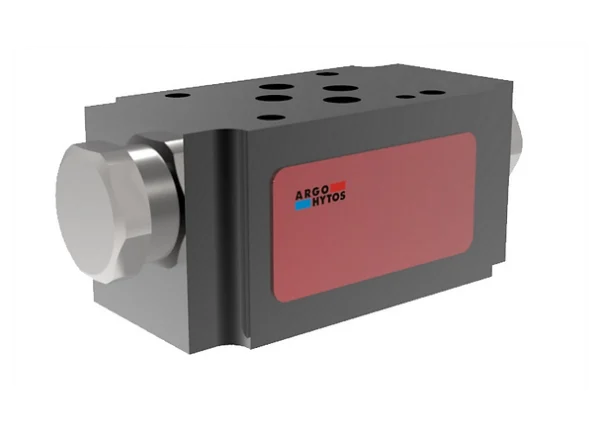

Size 06 (D03) • Qmax 60 l/min (16 GPM) • pmax 320 bar (4600 PSI)

• Pilot to open check valve, poppet type with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
• Sandwich plate design for use in vertical stacking assemblies
• Sharp-edged steel seats for dirt-tolerant performance
• Leak-free closing, suitable for fast cycling with long life
• High flow capacity
• Optional bias spring ranges for back-pressure control
• Three pilot ratios available
• I n the standard version, the valve housing is phosphated and steel parts are zinc-coated for 240 h protection acc. to ISO 9227
